scanreference camera

Buy Now

4,99900

Create your scan reference network

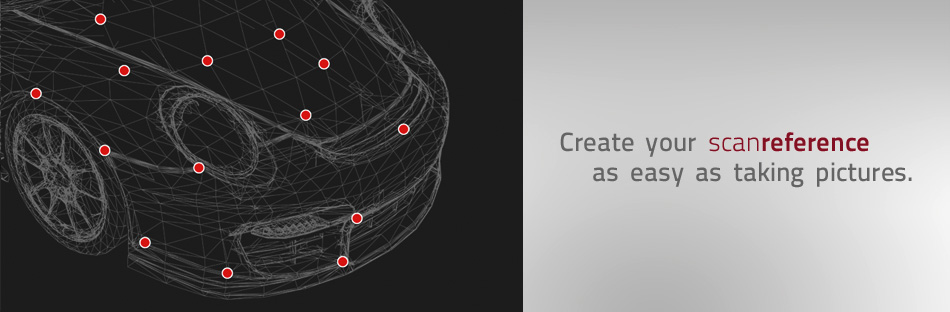

Creating a reference network is essential when scanning large or complex objects. The necessary ScanReference can easily be created by using reference points on the objects surface. The reference points marked with adhesive and removable stickers can easily be detected by any camera based scanners independent whether it’s a white light, blue light or LED scanner.

No expert knowledge required

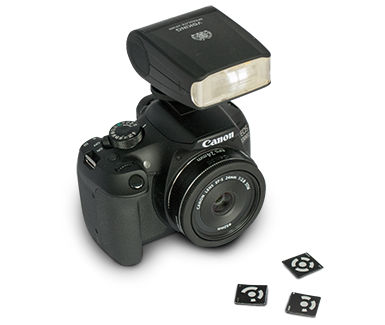

The work flow is simple: after signalizing the object with reference points and some coded targets for image matching, pictures are taken with the pre-calibrated high resolution digital camera from different view points.

The ScanReference Software calculates the coordinates of all reference points in a single step without any further interaction of the operator. No expert knowledge is necessary, everyone can do it. More ...

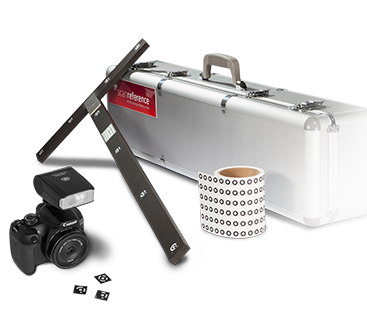

scanreference package

Specifications:

  • Camera Resolution: 18 Megapixel
  • Accuracy: ± (0.05 mm + 0.05 mm/m)
  • Windows 7 & Windows 10 compatible
  • Various output formats compatible to all major scanner brands
  • Free of charge software updates

Now available:

scanreference
for Artec3D scanners

  • fully integrated in Artec Studio
  • compatible to Artec Eva and Spider
  • accessories for Eva: 10 mm targets,
    long scale-cross
  • accessories for Spider: 5 mm targets,
    short scale-cross
Learn more about Artec3D scanners here.
